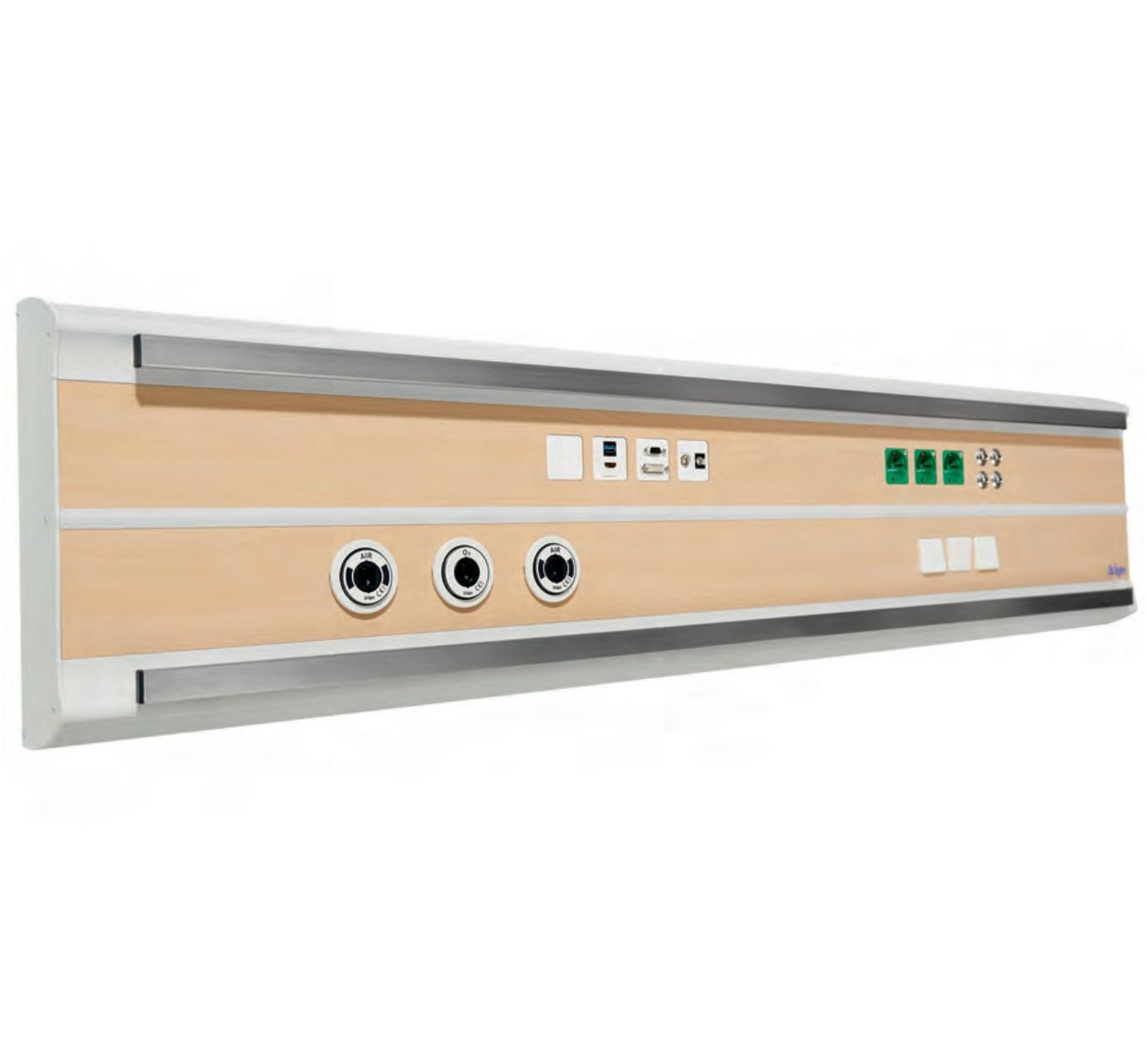

Draeger Linea Medical Supply Units

Model: N/A
Hãng SX: Draeger/ Germany

Liên hệ

Benefits:

– Space-saving flexibility

– Soild, modular construction

– Appealing design

– Effective solutions for hospitals and patients

Mua ngay Gọi điện xác nhận và giao hàng tận nơi

Specifications

Depending on each type of Draeger Linea medical supply units, there are different technical specifications to meet the different needs of the product.

Linea I – for intensive care

The Linea I features your choice of single-, double- or triple-duct design. Both upper and lower sections come equipped with integrated standard rails, while the middle section is reserved for the installation of media terminals for medical gases, vacuum, power supply and IT.

‒ Upper and lower section with integrated standard rail for flexible equipment mounting and positioning

‒ Syringe pumps firmly mounted using both upper and lower integrated standard rails

‒ Ample space for installation media terminals for medical gases as well as power supply and IT

Linea IM – for intermediate care Applications

The Linea IM is available in single-, dual- or triple-duct versions. The middle section is reserved for media terminals for medical gases, vacuum, IT and power supply. Either the upper or the lower section can be configured for illumination or for an optional standard rail. Depending on configuration you have a choice of the following options: indirect illumination, reading light and night light.

‒ Upper or lower section standard rail provides flexible mounting options for monitors, lights and other

devices

‒ Ergonomically placed media terminals for medical gases as well as power supply and IT

‒ Upper or lower section features integrated light options, dependant on the integrated standard rail

‒ Upgradable with optional ISO Standard Rail

Linea N – for normal wards

The Linea N features a triple-section design. The upper section is reserved for indirect illumination and the night light, while the middle section was designed for the installation of media terminals for medical gases, vacuum, IT and power supply. The lower section features a reading light. Your choice of full-length or short standard rail can be mounted between the sections for lighting and terminals.

‒ Upper section for indirect illumination, night light and optional ISO Standard Rail

‒ Middle section: up to three ducts for media terminals for gases, IT and power supply

‒ Lower section: reading light and optional standard rail
